Coffee Bag Filling Granule Packaging Machine XY100SJ6D Molde 2.8kw Power

Product Categories

Shanghai XUANYI Packaging Technology Co., Ltd.

Contact Now

Brand Name : EM

Model Number : XY100SJ6D

Place of Origin : CHINA

MOQ : 1 set

Price : USD8000.00-12000.00

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10 SETS

Delivery Time : 15 WORKING DAYS

Packaging Details : WOODEN CASE

Warranty : 12 months

Material : AL film,Plastic,Paper,PE film

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support,Field installation

Machine type : triangle Bag packing Machine,Sealing Machine,Bag Sealing

Voltage : 380V

Power(w) : 2.8kw

Speed : 40-50bags/min

Application : tea bag filling and packing

Machine frame : SUS304

Contact Now

Coffee Bag Filling Granule Packaging Machine XY100SJ6D Molde 2.8kw Power

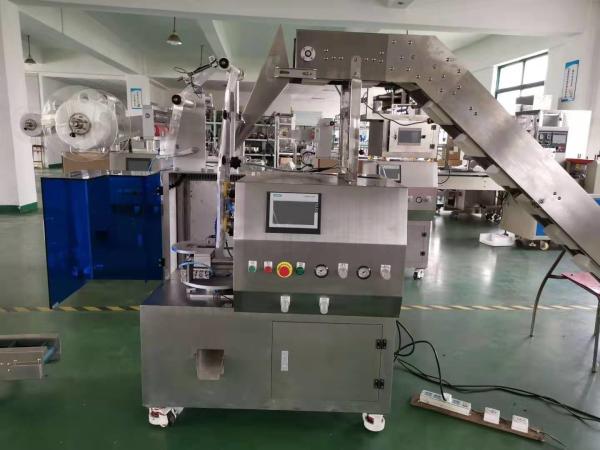

XY100SJ Automatic triangle tea bag filling and packing machine

1. Ultrasonic non-trace sealing cut to produce the triangle three-dimensional tea bag with beautiful bag shape and firm sealing

2. Automatic quantitative measurement is convenient for changing packaging specifications and types

3. PLC programmable control, touch screen operation, more convenient to use, more simple operation

4. Yadeke dynamic components and schneider low voltage appliances improve the stability of long-term operation of the equipment

5. Production capacity: 2,400-3,600 bags/hour for inner bags, 2,100-2,700 bags/hour for inner and outer bags.

project
Measuringrange	1-10g
Metering accuracy	±0.15g
Measurement method	4-6 heads tea weighter
Packaging speed	30-40bags/min
Packing method	Inner bag:3 sides sealing Outer bag:hot sealing
Packing size	Inner bag:120mm (4850 mm) outer bag:≥80*90 mm Inner bag:140mm (5860 mm) outer bag:≥ 80100 mm* Inner bag:160mm ( 6870 mm) outer bag:≥ 90110 mm
Packaging	Inner bag: ultrasonic sealing materials such as nylon mesh cloth, non-woven cloth, PLA corn fiber, etc Outer bag: heat-sealable composite material
Material specification	Inner bag:120 mm ,140 mm ,160 mm outer:≥ 160 mm
Unwinding quantity	2rolls
Unwinding diameter	≤Φ 400 mm
Inside of paper roll	Φ 76 mm
Number of operators	1 worker
Air pressure	≥ 1.2 Mpa
power	2.8Kw
size	Inner bag machine:L 1600 * W 800 * H 1900 mm Outer bag machine:L 1100 * W 950 * H 1620 mm
weight	900 Kg

Coffee Bag Filling Granule Packaging Machine XY100SJ6D Molde 2.8kw Power
